Description:
Steel tile roll forming machine namely tile roll forming line, can be used for manufacturing colored steel roof tile through the processes of decoiling, roll forming, profiling and cutting, etc. Thanks to the rational forming, steel tiles are of high strength and favorable appearance. They are suitable for modern architecture roofing.

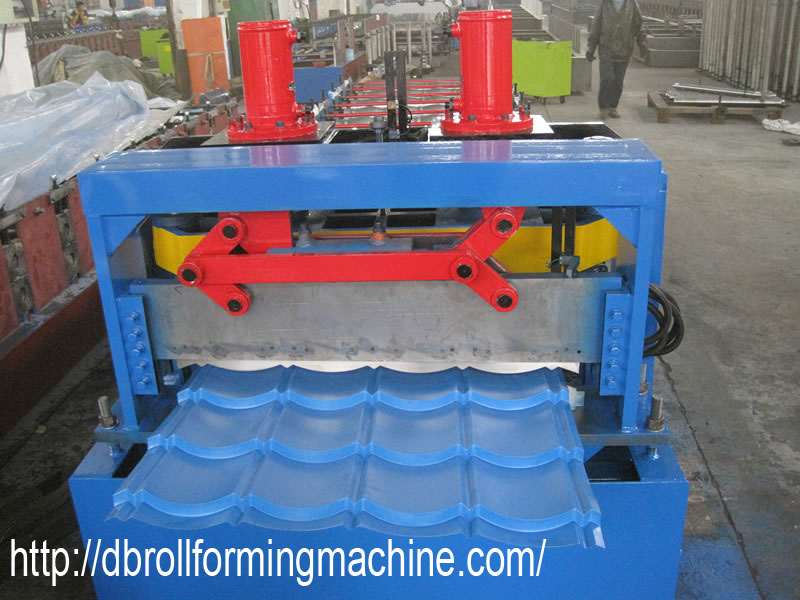

Steel tile roll forming machine is mainly constituted of automatic discharge table, feed leading table, main forming machine, cutting device, hydraulic station and computer control system.
Operation and Maintenance:
1. Steel tile roll forming machines, totally controlled by PLC, are fairly easy to operate. They can work automatically only through inputting the related production data, such as product number, length and punching size, etc;
2. If users need to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
3. Regular lubrication for chain wheel, bearing and speed reducer of tile roll forming lines should be conducted carefully. And the forming rollers should be kept clean;
4. With high performance in operation, steel tile roll forming machines have little noise.
Parameters:
| Suitable to process | Colored steel plate, galvanized board |
| Width of the plate | 1250mm |
| Rollers | 18 groups |
| Rolling material | Forging steel 45# |
| Rolling galvanization thickness | 0.3-0.8mm |
| Material of the cutting blade | Cr12mov |
| Dimensions | Approx 9m×1.8m×1.5m |
| Power | 5.5kw |
| Thickness of the plate | 0.3-0.8mm |
| Productivity | 10-15 m/min |
| Diameter of the roller | 76mm |
| Weight | About 7T |
| Voltage | 380V, 50Hz |
| Processing precision | Within 1.00mm |
Packaging and Transportation:
We deliver steel tile roll forming machines by sea shipping in container and nude packing.
