Description:

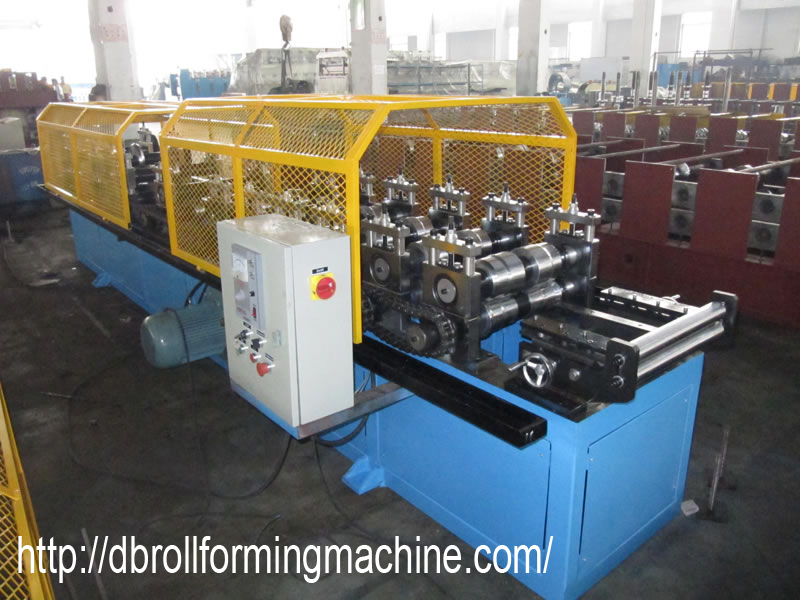

C stud roll forming machine, namely C purlin forming machine, is used for producing different sizes of C-shaped steel purlins in various thicknesses. Thanks to the good properties of low cost, short building period and recycle use, C-shaped steel purlins are used as the beam and supporter of construction.
C stud roll forming machine possesses good features of rational and beautiful structure, stable and reliable performance as well as strong carrying ability. It is mainly composed of uncoiler, flattening device, forming machine, cutting equipment, collection table, hydraulic station, control system, etc.
Processing Flow:
Manual decoiler—Roll forming machine—PLC system—Hydraulic system-Post cut—Stacking
Operation and Maintenance:
1. C stud roll forming machine, equipped with a computer controlling system, is fairly easy to operate. It can work automatically only through inputting the related production data, such as piece number, length, etc;
2. If users need to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
3. Regular lubrication for chain wheel, bearing and speed reducer of C purlin forming machines should be conducted carefully. And the forming rollers should be kept clean.
Parameters of C Stud Roll Forming Machine:
| Suitable material | Cold rolling steel, hot rolled coils, galvanized coils and general carbon steel, etc. |
| Suitable thickness | 0.45-15mm ,1.5-3mm (depending on specific requirements of users) |
| Forming specifications | Depending on specific requirements of customers |
| Forming speed | 10-15m/min |
| Main motor power | 5.5-18.5Kw (depending on specific requirements of users) |
| Hydraulic punching | Hydraulic cutting without wastes |
| Hydraulic station power | 3-7.5Kw (depending on specific requirements of users) |
| Control system of rack roll forming machine | PLC systems from Mitsubishi and Panasonic products, electrical appliances of famous brands |
| Optional accessories | Hydraulic uncoiler, etc |
Packaging and Transportation:
We deliver C stud roll forming machines by sea shipping in container and nude packing.
Jiangyin Dingbo Technology Co., Ltd. is a professional manufacturer and supplier of C stud roll forming machines in China. As an ISO 9001:2000 Quality Control System certified company, our company provides customers with superior machines, excellent services and reasonable price. Besides C stud roll forming machine, we also professionally provide U track roll forming machine and omega roll forming machine. Our C purlin forming machines can be provided to customers around the world, including India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
