Guardrail Roll Forming Machine, Highway Guardrail Forming Machine

Guardrail Roll Forming Machine

Guardrail Roll Forming Machine
Guardrail Forming Machine Guardrail Roll Forming Machines

Description:

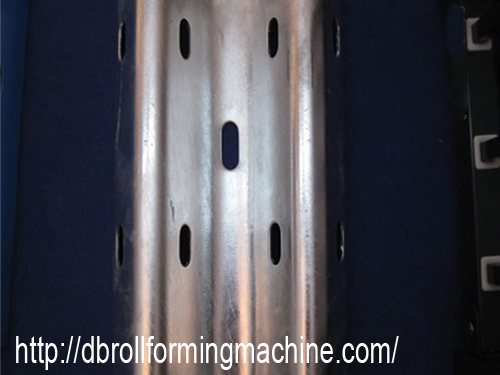

Guardrail roll forming machine also known as highway guardrail forming machine, can be widely used for making a variety of guardrails, such as highway guardrail, fence and pasture fence.
The guardrail roll forming machine is mainly consisted of uncoiler, feed leading table, main forming machine, punching system, cutting device, hydraulic station and computer control system.

Operation and Maintenance:
1.    Guardrail roll forming machines, totally controlled by PLC, is fairly easy to operate. It can work automatically only through inputting the related production data, such as product number, length and punching size, etc;
2.    If users need to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
3.    Regular lubrication for chain wheel, bearing and speed reducer of guardrail roll forming machines should be conducted carefully. And the forming rollers should be kept clean;
4.    With high performance in operation, highway guardrail forming machine has little noise.

Parameters:

Material thickness 2-4mm cold rolled steel or galvanized steel
Coil width of guardrail forming machine 478mm
Main motor power of this guardrail roll machinery 45kw
Main drive Joint coupling drive (gearbox for each roller station)
Main shaft diameter ф100mm
Material 45 forge steel is suitable to this guardrail roll machinery
roller material GCR15 quenched at 58℃-62℃
Roll station of this highway guardrail forming machine 17stations
Working speed 5m--12m/min (punching excluded)
Way of control PLC, Panasonic
Computer operating panel Touching screen

Packaging and Transportation:
We deliver guardrail roll forming machines by sea shipping in container and nude packing.

Jiangyin Dingbo Technology Co., Ltd. is a leading manufacturer and supplier of guardrail roll forming machines in China. As an ISO 9001:2000 Quality Control System certified company, our company has strong production ability, powerful technical support, strict quality inspection as well as advanced management experience. Besides guardrail forming machine, we also professionally produce W beam roll forming machine, three wave guardrail forming machine and column roll forming machine. Our roll forming machines can be provided to customers from India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
